Why is my dash cam's real field of view narrower than the advertised number?

Almost every manufacturer prints the diagonal field of view, measured corner to corner, because it is the biggest number. The horizontal coverage you care about on the road is narrower, usually around 80 percent of the diagonal figure, so a 170 degree diagonal lens sees roughly 140 degrees across.

Does this field of view tool work for any dash cam?

Yes. Enter any camera's advertised field of view and the tool estimates the real horizontal angle, the scene width at your chosen distance, and how much of the surroundings your setup captures. It is brand-neutral geometry, so it works for any make or model.

Dashline · Tools

Dash Cam Field of View: See What Your Camera Really Covers

Q: What field of view do I actually need on a dash cam?

For most drivers a horizontal field of view around 115 to 130 degrees (roughly a 140 to 160 degree advertised diagonal) is the sweet spot: wide enough to catch the next lane and the pavement, narrow enough to keep number plates and faces readable. Wider than that adds context but softens the edges.

Q: Does a dash cam see out of the side windows?

No. A windscreen-mounted camera points forward, so the immediate left and right of the car sit in a blind wedge. A rear camera adds a second cone facing back, but the sides between the two cones are still not covered. That is a physical limit of where the cameras point, not a fault.

Q: Is a wider dash cam always better?

Not always. A wider lens spreads the same sensor pixels over more scene, so detail at the edges and at distance drops. Wide is better for context, such as a car cutting in from the side; narrower is better for reading a plate straight ahead. It is a trade, not an upgrade.

Q: How wide does a 170 degree dash cam see at 10 metres?

A 170 degree advertised diagonal works out to roughly 140 degrees horizontal, which spans about 53 metres of scene 10 metres ahead using coverage width equals two times distance times the tangent of half the angle. That sounds huge, but the outer edges are heavily distorted and low on detail.

Manufacturers print one big number on the box. This free visualizer turns any dash cam’s advertised field of view into the coverage you actually get on the road — the real horizontal angle, how wide the scene is ahead of you, and the blind wedges to your sides.

Try the visualizer

Advertised field of view (diagonal)

150°as printed on the box

Setup

Distance ahead

Scene around you captured

34%

Real horizontal angle

≈ 123°

Width at 10 m

36.8 m · 121 ft

Road covered

10.1 lanes

Angular coverage, not to scale. The drawn cone uses the real horizontal angle — narrower than the number on the box.

~80%

A dash cam’s real horizontal coverage is only about 80% of the advertised diagonal number.

~40%

A single front camera captures roughly 40% of the scene around your car. The rest is behind and beside you.

140–160°

The advertised sweet spot most owners settle on: wide context without wrecking edge detail.

The diagonal trap

The number on the box is measured the flattering way

Field of view can be measured three ways — diagonally (corner to corner), horizontally (left to right), or vertically. Almost every dash cam is sold on its diagonal figure, because that is the largest of the three.

The coverage you care about while driving is the horizontal spread across the road. It runs about 80% of the diagonal, so a lens sold as 170° sees closer to 140° across. That is not a marketing lie, just a measurement choice — but it is why two cameras with the same headline number can frame the road very differently. Our guide to dash cam field of view walks through why.

170° → ~140°

Diagonal vs horizontal

The slider above shows both: you set the advertised diagonal, the readout gives the real horizontal angle the geometry actually delivers.

The math, shown

No black box — here is exactly how it computes

width = 2 × distance × tan( horizontal° ÷ 2 )

Real horizontal angle is estimated at ~82% of the advertised diagonal — a rough figure; your lens projection may differ.
Scene width is the span the lens takes in on a flat plane at the distance you pick, straight ahead.
Lanes covered assumes a 3.65 m lane (UK motorway standard; US interstate is 3.7 m).
Scene around you is the horizontal angle (doubled for front + rear) as a share of a full 360°.
These are geometry estimates for any dash cam. Real usable detail depends on resolution, distance, and light.

Wider means wider

How much the scene grows with the angle

Every extra degree of horizontal angle spreads the same sensor over more road. The width climbs fast — but so does the distortion at the edges, where a number plate turns to mush.

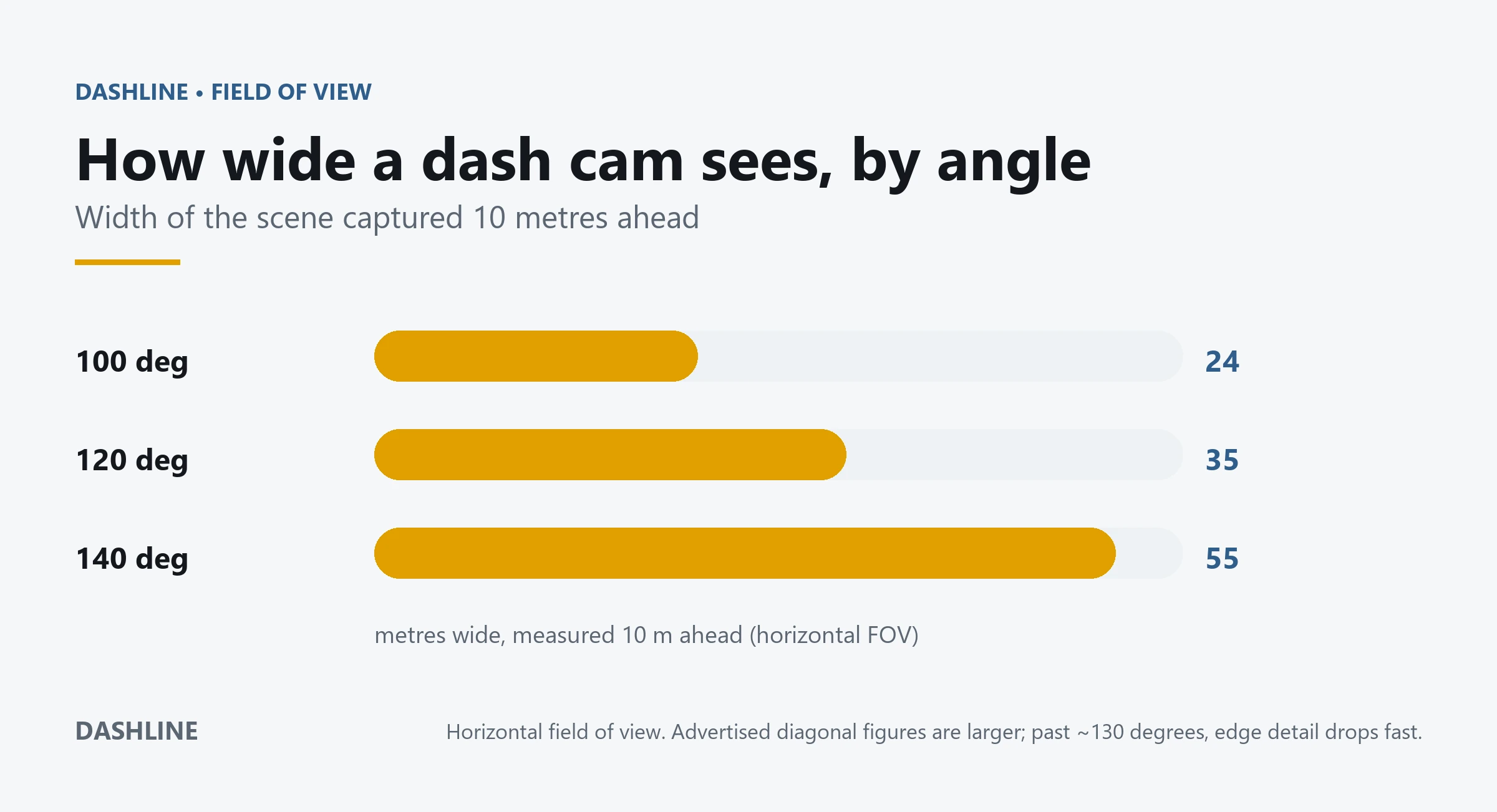

Bar chart of dash cam scene width 10 metres ahead: about 24 metres at 100 degrees, 35 metres at 120 degrees, and 55 metres at 140 degrees of horizontal field of view. — Scene width captured 10 m ahead, by horizontal field of view. Advertised diagonal figures are larger.

The numbers, sourced

Field of view, translated

Approximate figures using an ~82% diagonal-to-horizontal factor and coverage width at 10 m. Rounded; real cameras vary.
Advertised (diagonal)	Real horizontal	Scene width at 10 m	Best for
120°	≈ 98°	≈ 23 m	Sharpest detail; focused on the lane ahead
140°	≈ 115°	≈ 31 m	Balanced — the common owner’s choice
160°	≈ 131°	≈ 44 m	Wide context; catches side cut-ins
170°	≈ 139°	≈ 53 m	Maximum context; softest, most distorted edges

Front + rear

Two cones cover more — the sides still don’t

Adding a rear camera gives you a second cone facing back, so a front + rear setup captures far more of what happens around the car. But look at the gap: the immediate left and right sit between the two cones, in a wedge neither lens can see. Our front and rear dash cam guide covers how the two channels work together.

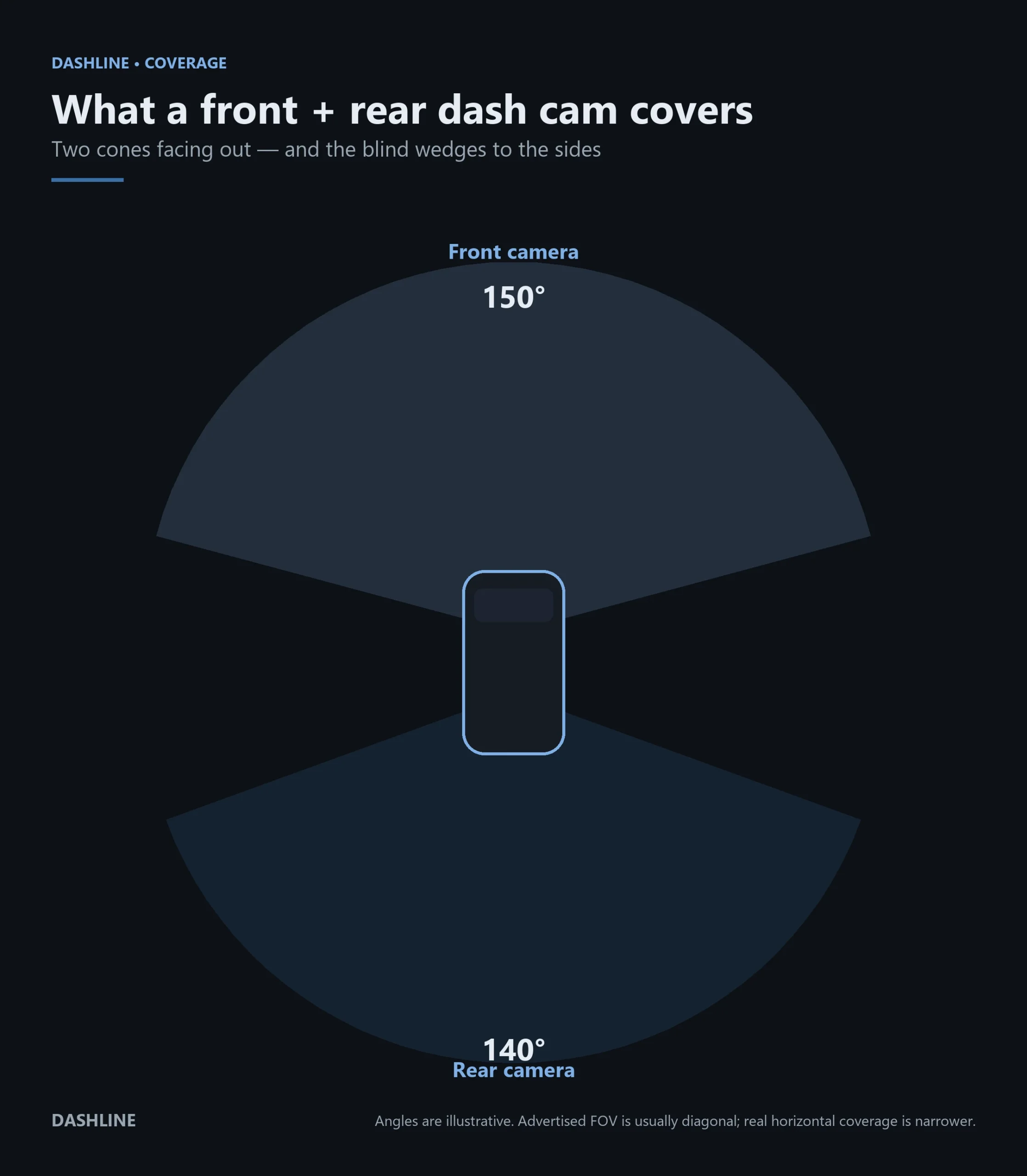

Top-down diagram of a car with a wide front coverage cone and a narrower rear cone, and the immediate left and right marked as blind wedges. — A front + rear setup: two cones facing out, with blind wedges to each side.

Read your own coverage

Three steps to size up any camera

1

Find the advertised angle

Check the box or spec sheet for the field of view. If it just says a single number, it is almost always the diagonal.

2

Set it in the slider

Enter that number above. The readout converts it to the real horizontal angle and the scene width at 5, 10, or 20 metres.

3

Judge the trade

Wider fills the frame with context; narrower keeps plates readable. Match the angle to what you most need to prove, not the biggest number.

What it can’t see

Where every dash cam is blind

Blind sides

Your immediate left and right

A forward camera points down the road. A car scraping your door from directly beside you falls outside the cone — even at 170 degrees.

Soft edges

Detail at the far edges

Wide lenses stretch the scene at the sides. A plate that is sharp dead ahead can be unreadable at the frame’s edge. Wider coverage is not the same as more evidence — see our plate read-distance tool.

Vertical limit

Straight up and down

Field of view is mostly a horizontal story. Overhanging signs, high mirrors, or a low bumper tap can sit above or below the frame.

Not a promise

Coverage ≠ usable footage

Geometry says the light reaches the sensor. Whether it resolves into readable detail still depends on resolution, distance, speed, and light.

Cite this page

Use these figures? A link is appreciated.

Dashline. “Dash Cam Field of View: See What Your Camera Really Covers.” Retrieved from dashlinecameras.com/dash-cam-field-of-view-calculator.

Or embed the credit on your site:

<a href="https://dashlinecameras.com/dash-cam-field-of-view-calculator/">Dash Cam Field of View Visualizer</a> — a free tool from <a href="https://dashlinecameras.com/">Dashline</a>

Questions

Dash cam field of view, answered

What field of view do I actually need on a dash cam?

For most drivers a real horizontal field of view around 115 to 130 degrees — roughly a 140 to 160 degree advertised diagonal — is the sweet spot. Wide enough to catch the next lane and the pavement, narrow enough to keep number plates and faces readable.

Why is the real field of view narrower than the advertised number?

Manufacturers print the diagonal figure, measured corner to corner, because it is the biggest. The horizontal coverage across the road is narrower — usually about 80% of the diagonal — so a 170 degree lens sees roughly 140 degrees across.

Does a dash cam see out of the side windows?

No. A windscreen camera points forward, so the immediate left and right of the car sit in a blind wedge. A rear camera adds a cone facing back, but the sides between the two cones are still not covered.

Is a wider dash cam always better?

Not always. A wider lens spreads the same pixels over more scene, so edge and distance detail drop. Wide is better for context; narrower is better for reading a plate straight ahead. It is a trade, not an upgrade.

How wide does a 170 degree dash cam see at 10 metres?

A 170 degree diagonal is about 140 degrees horizontal, which spans roughly 53 metres of scene 10 metres ahead. The outer edges of that span are heavily distorted and low on detail.

Does this tool work for any dash cam?

Yes. Enter any camera’s advertised field of view and the tool estimates the real horizontal angle, the scene width at your distance, and how much of your surroundings the setup captures. It is brand-neutral geometry.
